Why BGA Packaging Enables Device Miniaturization? Types and Core Advantages

BGA packaging, short for Ball Grid Array packaging, is an integrated circuit packaging technology in which the I/O terminals are arranged in an array of circular or cylindrical solder balls on the underside of the package. It features wide pin spacing, high assembly yield, improved thermal and electrical performance, reduced thickness and weight, low signal propagation delay, and high reliability.

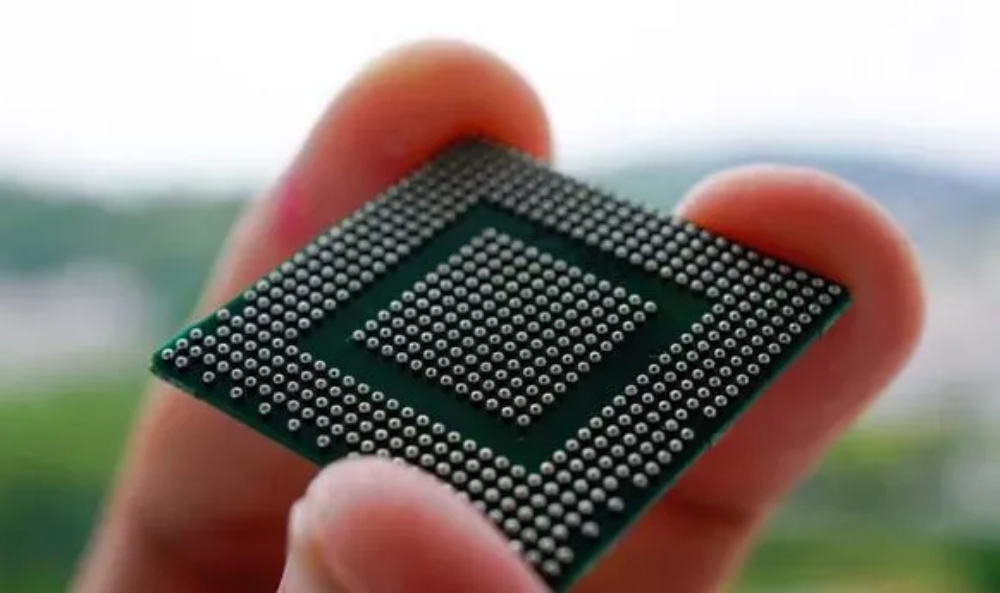

Close-up of a BGA packaged chip held in hand, showing the dense array of solder balls on the bottom surface.

Why Can BGA Substrates Achieve Miniaturization?

Compared with traditional IC packaging methods, the main advantage of BGA packaging is its ability to accommodate more interconnections in a smaller space. For example:

Peripheral lead packages such as the Quad Flat Package (QFP) have leads only at the edges, thereby limiting contact density.
Pin Grid Arrays (PGAs) use an array of pins extending from the bottom of the package, but the minimum pin pitch is larger than that of solder balls.
Leadless chip carriers have contacts on the edges or bottom but cannot match the density of BGAs.

In contrast, the solder ball pitch in BGAs is as small as 0.5 mm, or even 0.4 mm or less, enabling very high density. This makes it possible to incorporate more functionality into smaller packages. The ideal spherical shape of the solder balls also allows for smaller spacing between them and the pins.

The higher number of contacts enables the integration of more functions within BGA packaging, such as multiple processors, memory, sensors, wireless components, power management, and dedicated accelerators, thereby meeting the demands of applications like 5G, AI, ADAS, and the Internet of Things (IoT). Miniaturization also aligns with consumer preferences for more compact electronic devices.

Classification and Characteristics of BGA Packaging Technologies

Based on the substrate material, BGAs are primarily classified into PBGA (Plastic BGA), CBGA (Ceramic BGA), FCBGA (Flip-Chip BGA), and TBGA (Tape BGA).

PBGA Packaging

We widely adopt PBGA as the mainstream BGA packaging solution. We produce it with plastic materials and processes and use BT resin/glass laminate PCB substrates. Technicians bond the bare die to the substrate top and lead frame via wire bonding (WB) technology, then apply epoxy-resin-plastic composite for injection molding to form a complete plastic package. Manufacturers have adopted this packaging style for Intel Pentium II, III, and IV processors.

We make the solder balls from a low-melting-point eutectic solder alloy (63Sn37Pb). Each ball measures around 1 mm in diameter, with a pitch between 1.27 mm and 2.54 mm. We do not need extra solder to attach these balls to the package base. During assembly, the solder balls melt and bond to the PCB surface, forming a barrel-shaped structure.

The characteristics of the PBGA packaging are primarily reflected in the following four aspects:

Low manufacturing cost and high cost-effectiveness.
The solder balls participate in the formation of reflow solder joints, and the coplanarity requirements are lenient.
Good thermal matching with epoxy resin substrates, resulting in high quality and performance when mounted on a PCB.
Sensitive to moisture, with a severe popcorn effect, posing reliability risks; additionally, the package height—which is higher than that of QFP—presents a technical challenge.

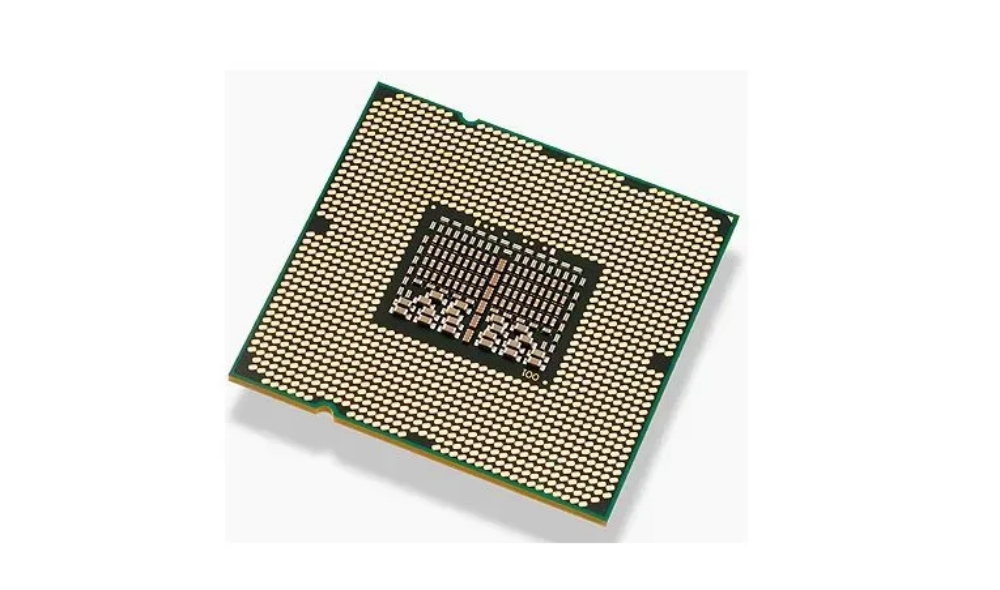

Rear view of a CPU BGA package, showing the full solder ball array and central die area for high-performance computing applications.

CBGA Packaging

We fabricate CBGA packages by mounting a bare die on top of a multilayer ceramic substrate carrier. We solder a metal cover onto the substrate with hermetic solder to shield the die, leads, and pads from external damage. The assembled package undergoes hermetic sealing to enhance reliability and physical protection. Pentium I, II, and Pentium Pro processors all utilize this packaging form.

CBGA utilizes a multilayer ceramic interconnect substrate. The ball material is a high-melting-point 90Pb10Sn eutectic solder, while the connection between the balls and the package body uses a low-temperature eutectic solder (63Sn37Pb). It employs a combination of a cover and a glass gas seal, falling under the category of hermetic packaging.

The characteristics of CBGA packaging are primarily reflected in the following six aspects:

It is insensitive to moisture, offers high reliability, and has excellent electrical and thermal performance.
Good CTE matching with ceramic substrates.
Good reworkability for connections between the chip and components.
FCB technology is used for bare chips, resulting in higher interconnect density.
Higher packaging costs.
Poor CTE matching with substrates such as epoxy resin.

FCBGA Packaging

FCBGA is currently the primary packaging format for graphics acceleration chips. This packaging technology originated in the 1960s when IBM developed the so-called C4 (Controlled Collapse Chip Connection) technology for the assembly of mainframe computers. It subsequently evolved to utilize the surface tension of molten bumps to support the chip’s weight and control bump height, becoming the direction of development for flip-chip technology.

This packaging uses small balls instead of the pins previously used to connect the processor. A total of 479 balls, each with a diameter of 0.78 mm, are required, providing the shortest possible external connection distance. FCBGA achieves interconnection with the substrate via FCB technology; the key difference from PBGA is that the bare chip faces downward.

The characteristics of FCBGA packaging are primarily reflected in the following three aspects:

Excellent electrical performance, which reduces losses and inductance between component interconnections, minimizes electromagnetic interference, and supports higher frequencies.
Increased I/O density and improved utilization efficiency, effectively reducing the substrate area by 30% to 60%.
Good thermal dissipation, which enhances the stability of the chip during high-speed operation.

TBGA Packaging

TBGA, also known as Tape-on-Grid Automatic Bonding, is a relatively novel form of BGA packaging. It uses a PI multilayer routing substrate, with high-melting-point solder alloys for the solder balls and low-melting-point solder alloys for the bonding process.

The characteristics of TBGA packaging are primarily reflected in the following five aspects:

Good thermal matching with epoxy resin PCB substrates.
The thinnest BGA packaging form, facilitating chip miniaturization.
Lower cost compared to CBGA.
Relatively sensitive to heat and humidity.
The chip is light and small, resulting in greater self-alignment deviation compared to other BGA types.

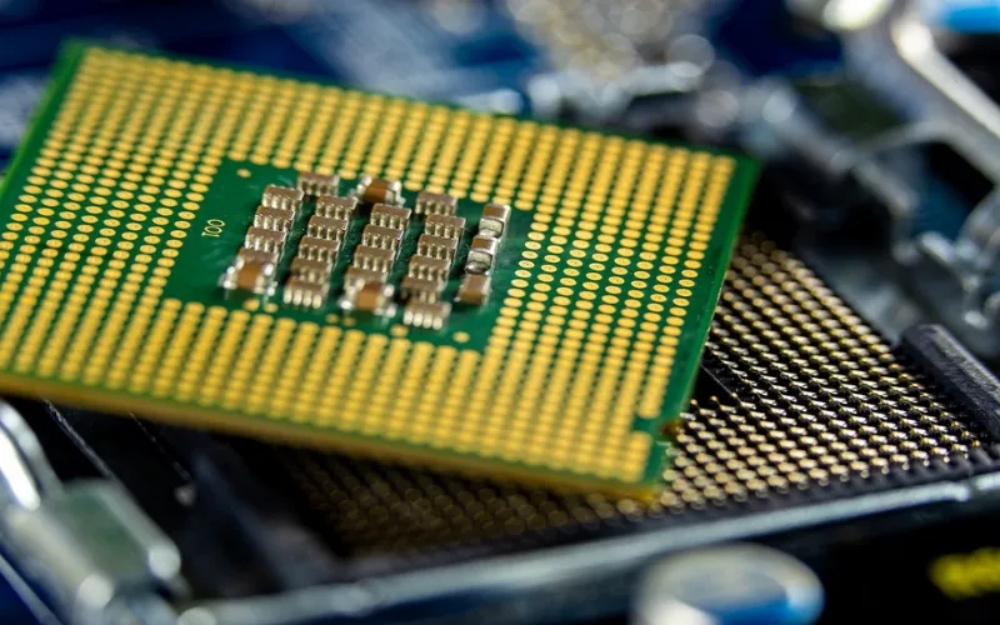

BGA packaged chip aligned with its socket on a motherboard, illustrating the soldering interface for surface-mount assembly. — BGA-packaged chip aligned with its socket on a motherboard, illustrating the soldering interface for surface-mount assembly.

Summary

In the field of modern integrated circuit packaging, BGA occupies a central position, and most system-level packages adopt this mature and efficient packaging method. As a milestone in the history of high-pin-count packaging, the emergence and evolution of BGA packaging technology have profoundly driven the development of electronic devices toward miniaturization, high performance, and high integration, becoming one of the key technologies supporting the iterative upgrades of various electronic devices.
