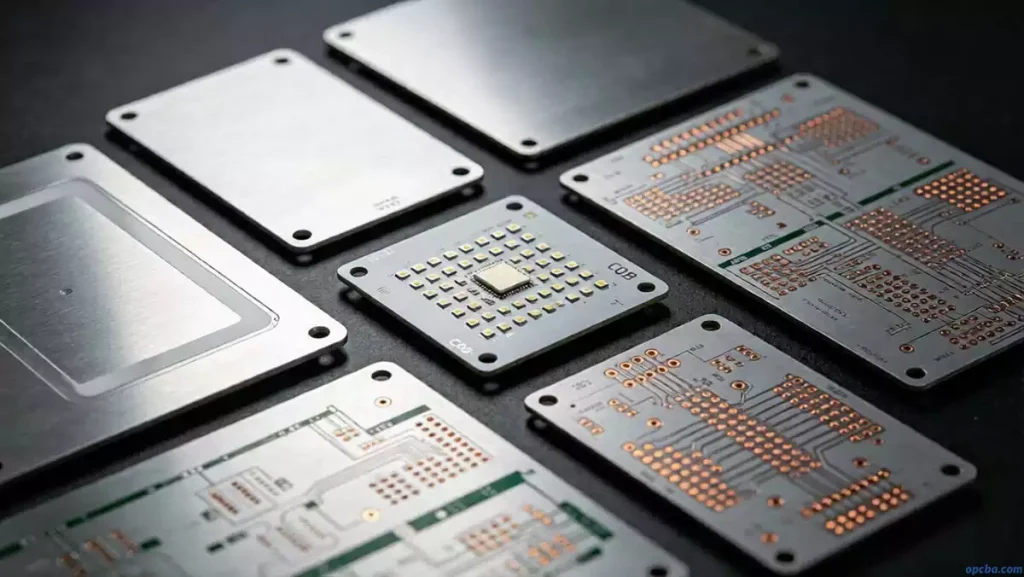

Anyone working on high-temperature electronic hardware is familiar with metal-based PCB, also widely known as MCPCB or metal core PCB. These boards stand out for outstanding heat dissipation, and they fall into five core types based on layer structure and design purpose.
Each variant serves distinct working conditions, thermal demands and circuit complexity. Understanding their differences helps match the right board to specific project needs.
Single Layer MCPCB
Single layer MCPCB comes with only one copper trace layer mounted above a solid metal substrate. Aluminum is the most common base material here, balanced in cost and thermal conductivity. If you’re curious about how aluminum substrate PCBs compare to traditional FR-4 boards, we break down the key differences here: What is the difference between aluminum substrate PCB and FR-4 PCB?
This simple structure works great for basic heat-dissipation scenarios. Audio equipment, consumer LED lighting and small power units rely heavily on this board type for stable daily operation.
COB MCPCB

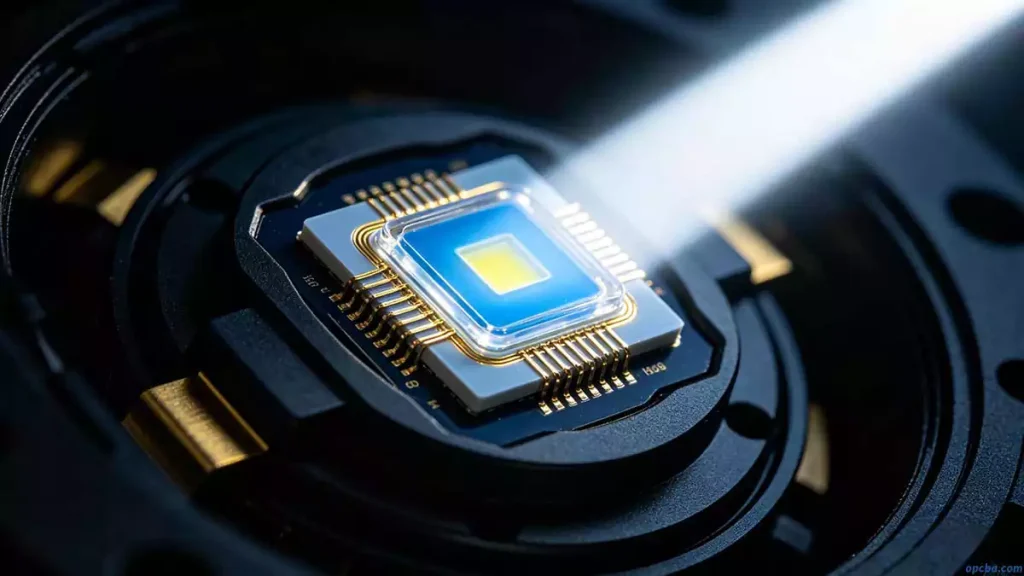

Chip-On-Board MCPCB directly attaches bare chips onto the metal core surface. This design removes redundant intermediate layers and cuts down thermal resistance as much as possible.
Heat transfers faster and more evenly, which protects sensitive chips from overheating damage. Most high-power automotive lights and high-density LED modules adopt this structure for long-term reliability.
Double Layer MCPCB
Double layer MCPCB features two independent copper circuits arranged on the same side, connected to a bottom metal core. Extra lamination steps are required to lock the metal base firmly, making production a little more complex.
It balances decent heat dissipation and improved signal performance. We often see this design used in vehicle electronics, power amplifiers and office automated devices.
Double-Sided MCPCB
Double-sided MCPCB adds conductive copper layers on both top and bottom sides of the metal core. Engineers use drilled vias to connect upper and lower traces for richer circuit layout options.
Higher component density becomes achievable while keeping steady thermal output. Power supply modules, transportation control units and high-frequency regulation equipment commonly use this board.
The metal core also acts as a unified ground reference, bringing extra stability for high-frequency signal operation.
Multiple Layer MCPCB
Multi-layer MCPCB contains three or more copper layers integrated with a central metal core. Build procedures involve repeated lamination, precise alignment and strict layer-by-layer control.
It supports ultra-complex wiring and high-density circuit design. Medical devices, optical sensors and high-end industrial instruments depend on multi-layer metal core boards for stable performance.
Naturally, complex craftsmanship means higher production costs and longer lead times. Such boards are only selected for high-spec scenarios where ordinary PCB solutions cannot meet demands.
Wrap-Up
Each style of metal core PCB is developed around actual thermal management and layout limits. From low-cost single-layer models to high-precision multi-layer versions, every category has its own irreplaceable value.
If you need custom metal-based PCB fabrication for your project, our team can provide mature solutions tailored to your thermal and structural requirements.
