Printed Circuit Boards (PCBs) are integral to modern electronics, serving as the backbone that connects and supports electronic components. The choice of materials used in PCB fabrication is crucial, as it affects the board’s performance, durability, and cost. This essay explores the various materials utilized in PCB construction, their properties, and the factors influencing material selection. pcb substrate
1. Types of PCB Materials

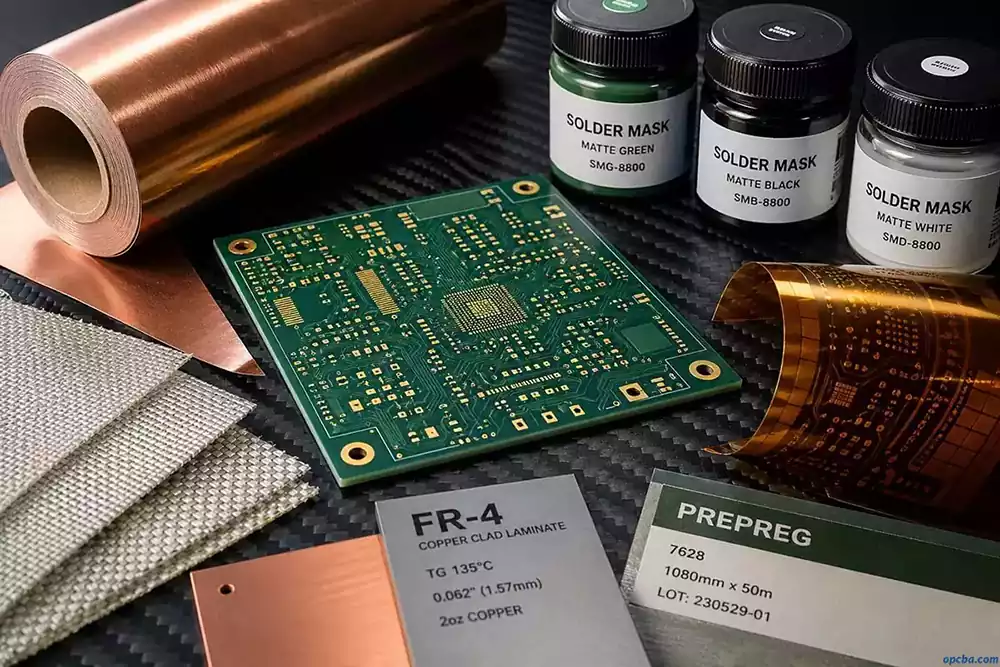

PCBs are primarily composed of a substrate material, a conductive layer, and a protective layer. The most common materials used in these layers include:
Substrate Materials: pcb substrate
FR-4: A widely used composite material composed of woven fiberglass cloth and epoxy resin. It is known for its good electrical insulation properties and thermal stability.
CEM-1 and CEM-3: These are composite materials that combine paper or woven glass with epoxy. CEM-1 has one layer of copper, while CEM-3 has two, making them lighter and cheaper than FR-4 but less thermally stable.

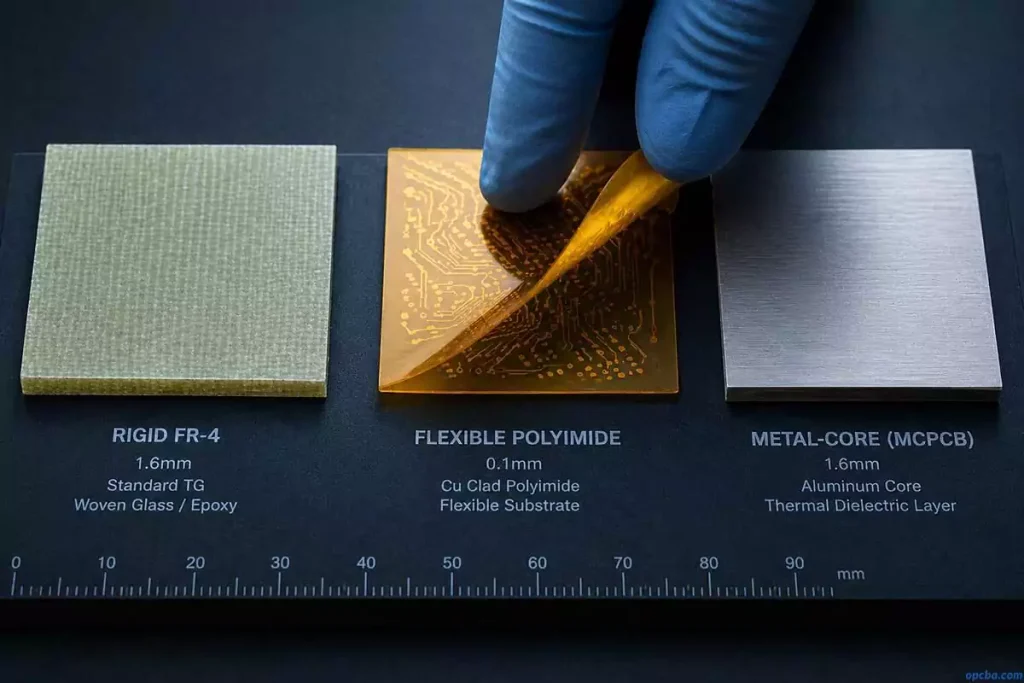

Polyimide: Built for high-temperature applications, polyimide materials have excellent thermal and chemical resistance, making them suitable for flexible PCB designs.
Conductive Materials:
Copper: The most common conductive layer material due to its excellent electrical conductivity, affordability, and ease of fabrication.
Gold and Silver: While much more expensive than copper, these metals are used in specific applications where higher conductivity or corrosion resistance is required.
Protective Layers:
Solder Mask: A layer applied over the copper to protect it from oxidation and to prevent solder bridges from forming during assembly.
Silkscreen: This layer allows for the printing of identifiers and component outlines on the PCB surface, aiding in assembly and troubleshooting.
2. Properties of PCB Materials
Selecting the appropriate materials for PCBs is a complex process that considers various properties:
Electrical Properties: High dielectric strength and low dissipation factors are desirable for effective signal transmission and minimal noise.
Thermal Properties: Materials with high thermal conductivity can effectively dissipate heat generated by electronic components, preventing overheating and potential failure.
Mechanical Properties: Good mechanical strength ensures that the PCB can withstand physical stresses during manufacturing and use. Flexibility is essential for applications requiring bendable or conformable boards.
Chemical Resistance: PCBs must resist environmental factors such as moisture, chemicals, and temperature variations to maintain reliability and prevent degradation.
3. Factors Influencing Material Selection
The selection of PCB materials depends on various factors: pcb substrate
Application Requirements: Different applications demand different properties. For instance, aerospace or automotive electronics require high durability and thermal resistance, while consumer electronics may prioritize cost-effectiveness.
Cost Constraints: Material costs can significantly impact the overall cost of PCBs, influencing manufacturers to seek the most economical solutions while still meeting performance standards.
Manufacturing Process: The chosen materials must be compatible with existing manufacturing processes, including laminating, etching, and soldering.
Regulatory Compliance: Certain applications may require adherence to specific regulations such as RoHS (Restrictions on Hazardous Substances) or IPC standards, dictating the choice of materials.
In summary, the materials used in PCB construction are diverse and must be selected carefully to meet specific electrical, thermal, mechanical, and chemical requirements. Understanding the properties of different substrates, conductive materials, and protective layers, along with the factors that influence material selection, is vital for optimizing PCB design and performance. As technology continues to advance, it will be essential to stay informed about new materials and innovations that enhance the capabilities and reliability of printed circuit boards.
