Resistors are the most fundamental passive current-limiting elements in electronic circuits, controlling the flow of electric current to protect devices and ensure stable operation. This article details the classification, key types, unique characteristics, and practical applications of these components—providing authoritative guidance for electronic design and selection.
These elements are passive, meaning they do not generate energy but dissipate it as heat. Their core functions include limiting current to prevent component damage, dividing voltage in circuit branches, and adjusting signal levels. Most have two pins; those with a fixed resistance value are called fixed resistors, while those with adjustable resistance are known as potentiometers or variable resistors.
1. Resistor Classification: Key Categories
These passive devices are classified by three main criteria—volt-ampere characteristics, resistance properties, and materials—each category serving distinct application needs in electronic design.

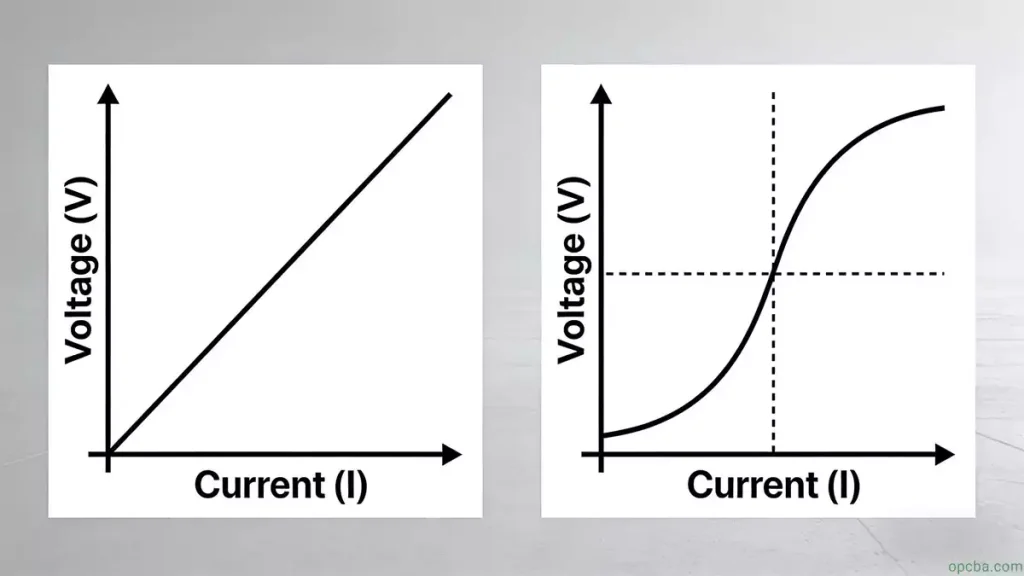

1.1 Resistor Classification by Volt-Ampere Characteristics
Volt-ampere characteristics describe the relationship between voltage and current in these elements, distinguishing two primary types:
- Linear Resistors: At a constant temperature, their resistance remains nearly unchanged and stable. They follow Ohm’s Law, making them ideal for circuits requiring consistent current/voltage control .
- Nonlinear Resistors: Their resistance changes significantly with current or voltage fluctuations, with a curved volt-ampere characteristic. The ratio of voltage to current at a specific operating point is static resistance, while the curve’s slope is dynamic resistance. They are used in circuits requiring sensitivity to electrical changes.
1.2 Resistor Classification by Resistance Properties
This classification is based on whether the device’s resistance value is adjustable or sensitive to environmental factors:
- Fixed & Variable Resistors: Tunable vs. Stable Options: Variable types (e.g., sliding rheostats) have adjustable resistance for tuning circuits. Fixed resistors (also called fixed-value resistors) have a non-adjustable resistance, the most widely used type in general electronics.

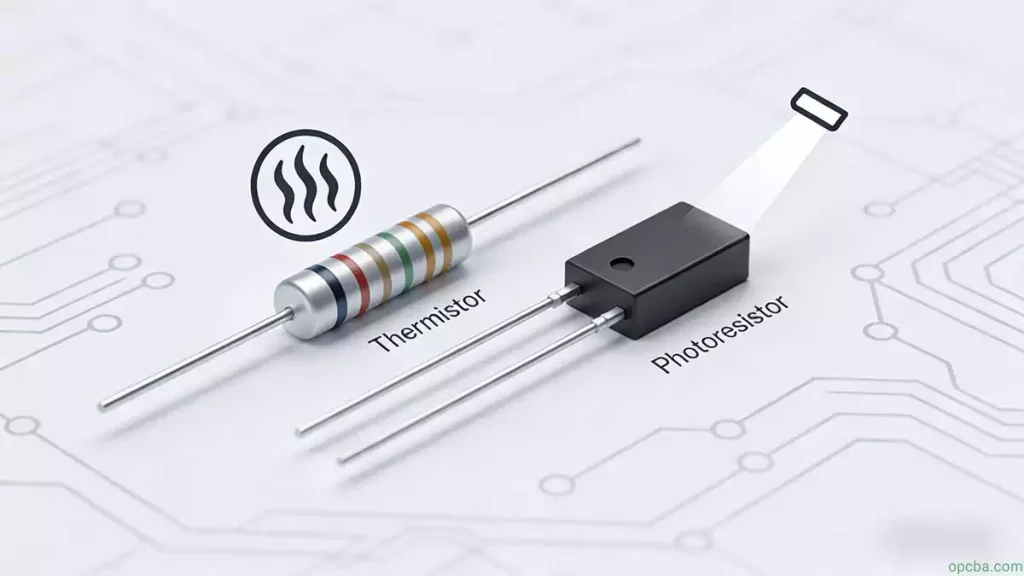

- Special Resistors (Sensitive Resistors): Sensitive to physical environmental factors (temperature, humidity, light, voltage, mechanical force, gas concentration). Their resistance changes with these physical quantities, making them suitable for sensing applications. Common types include thermistors, photoresistors, humidity-sensitive resistors, and varistors.
- Non-Inductive Resistors: Often used as loads to absorb excess electricity, buffer, or brake. Also known as JEPSUN braking resistors or Jiebixin load resistors, they protect frequency converters and are used in precision instruments and electronic industrial equipment.

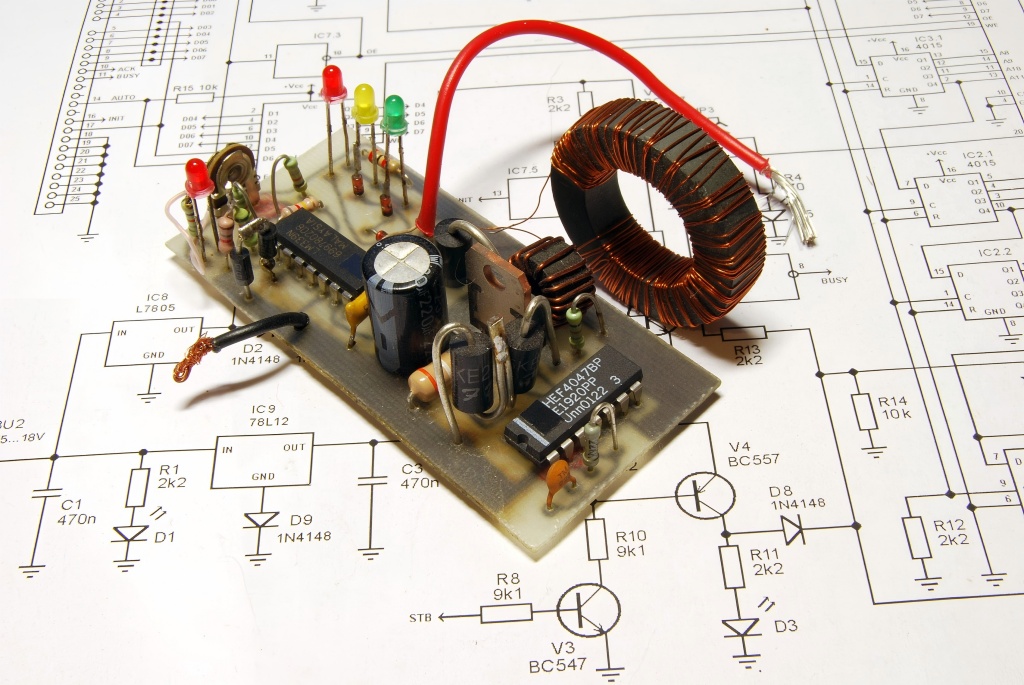

- Fuse Resistors: A special component with dual functions of a resistor and a fuse. When circuit power exceeds the rated power, it fuses to disconnect the circuit and prevent damage. Primarily used in power circuits of color TVs, video recorders, and testing instruments.
1.3 Resistor Classification by Material
The performance, cost, and application scope of these current-limiting elements are largely determined by their core material. The three main categories are alloy-type, film-type, and synthetic-type:
1.3.1 Alloy-Type Resistors: Precision & Stability for Critical Circuits
Made from high-resistance alloys, they offer high precision and stability, suitable for high-demand applications:
- Precision Wire-Wound Resistors: Wound with high-resistance alloy wire on an insulating frame, coated with heat-resistant glaze or paint. Features: stable performance, heat/corrosion resistance, low temperature coefficient, and high resistance accuracy. Used in precision instruments and military equipment, often paired with high-reliability components like Aerospace Ceramic Capacitors: High-Reliability PCB Integration for Extreme Environments
- Power Wire-Wound Resistors: Also called cement resistors, wound with high-resistance alloy wire (nickel, chromium, iron) on alkali-free heat-resistant porcelain, sealed with incombustible heat-resistant cement. Features: accurate resistance, low noise, good heat dissipation, and high power tolerance. Used in amplifier power stages but not suitable for high-frequency circuits due to inductance and high cost.
- Precision Alloy Foil Resistors: Special metal foil is attached to a ceramic substrate, etched into continuous lines (chemical or laser etching) to form resistors. Complex craftsmanship leads to high cost. Used in military and high-precision measurement products. The metal foil is 100x thicker than film, offering superior heat resistance and anti-static performance.
1.3.2 Film-Type Resistors: Balance of Performance & Cost
A thin film of conductive material is deposited on an insulating substrate, balancing performance and cost for general applications:
- Metal Film Resistors (Symbol: RJ): Metal alloy is vacuum-evaporated onto a ceramic rod. Features: wide operating temperature range, low noise, and small size. Used in circuits requiring high stability (advanced audio equipment, computers, instruments, national defense, space equipment).
- Metal Oxide Film Resistors (Symbol: RY): Tin oxide is plated on a porcelain tube, with a metal oxide layer deposited on an insulating rod. Features: high-temperature stability, heat shock resistance, strong load capacity, and resistance to acids, alkalis, and salt fog. Suitable for harsh environments.
- Carbon Film Resistors (Symbol: RT): Crystalline carbon is deposited on a ceramic rod, with a resistance range of 10Ω~10MΩ and rated power of 1/8W~10W. Features: low cost, stable performance, wide resistance range, and low temperature/voltage coefficients. The most widely used film component, usually with a green paint exterior.
1.3.3 Synthetic-Type Resistors: Cost-Effective Options
Made from mixed conductive materials, fillers, and adhesives, they are cost-effective but less stable:
- Solid Carbon Resistors: Mixed carbon granular conductive material, filler, and adhesive, with wires implanted. Resistance is affected by carbon powder ratio and carbon rod thickness. Low cost but high resistance error, high noise, and poor stability—rarely used today.
- Metal Glaze Resistors: A mixture of metal powder and glass glaze is printed on a ceramic substrate and fired. Features: small size, high precision, and good stability. Used in miniaturized electronic devices.
2. Key Factors for Resistor Selection
Selecting the right component requires balancing application needs, performance, and cost. Key considerations include:
- Resistance Value & Tolerance: Match the required resistance and accuracy (e.g., precision circuits need ±1% tolerance; general circuits use ±5%~±10%).
- Rated Power: Ensure the element can withstand the circuit’s power dissipation to avoid overheating and failure.
- Operating Environment: Choose components resistant to temperature, humidity, or corrosion for harsh conditions (e.g., metal oxide film for outdoor equipment).
- Circuit Frequency: Avoid wire-wound types in high-frequency circuits (due to inductance); use film components instead.
3. FAQ About Resistors
- What is the difference between linear and nonlinear resistors? Linear types have stable resistance at constant temperature; nonlinear types’ resistance changes with current/voltage, following a curved volt-ampere characteristic.
- Which component is best for high-precision applications? Precision wire-wound or alloy foil resistors, due to their low temperature coefficient and high accuracy.
- Why are carbon film components widely used? They offer a balance of low cost, stable performance, and wide resistance range, suitable for most general electronic circuits.
- What is the function of a fuse component? It acts as both a resistor (limiting current) and a fuse (protecting the circuit by fusing when power exceeds the rated value).
4. Conclusion
Resistors are indispensable in electronic circuits, with diverse classifications tailored to specific application needs. Understanding their classification by volt-ampere characteristics, resistance properties, and materials—along with their unique features—enables engineers to select the optimal component for any circuit design. From low-cost carbon film components for general use to high-precision alloy foil resistors for military applications, these current-limiting elements play a critical role in ensuring the stability and reliability of electronic devices worldwide.
