What is RF Microwave PCB? Materials, Design & Real-World Applications

If you’ve ever worked on wireless communication, radar, or 5G hardware, you’ve probably run into RF Microwave PCBs. They’re the special high-performance boards that keep high-speed signals from falling apart.

Here’s the quick breakdown:

  • High-frequency PCBs cover frequencies above 300MHz (wavelength < 1 meter)
  • Microwave PCBs run above 3GHz (wavelength < 0.1 meter)

Most industry engineers broadly define any Printed Circuit Board(PCB) above 1GHz as a high-frequency board.

You might also hear them called RF PCBs—usually referring to boards above 100MHz, while RF Microwave PCBs mean frequencies above 2GHz.

Unlike regular PCBs, these handle super sensitive signals—heat, interference, even tiny material shifts can ruin performance. That’s why designing and making them is way trickier than standard boards.

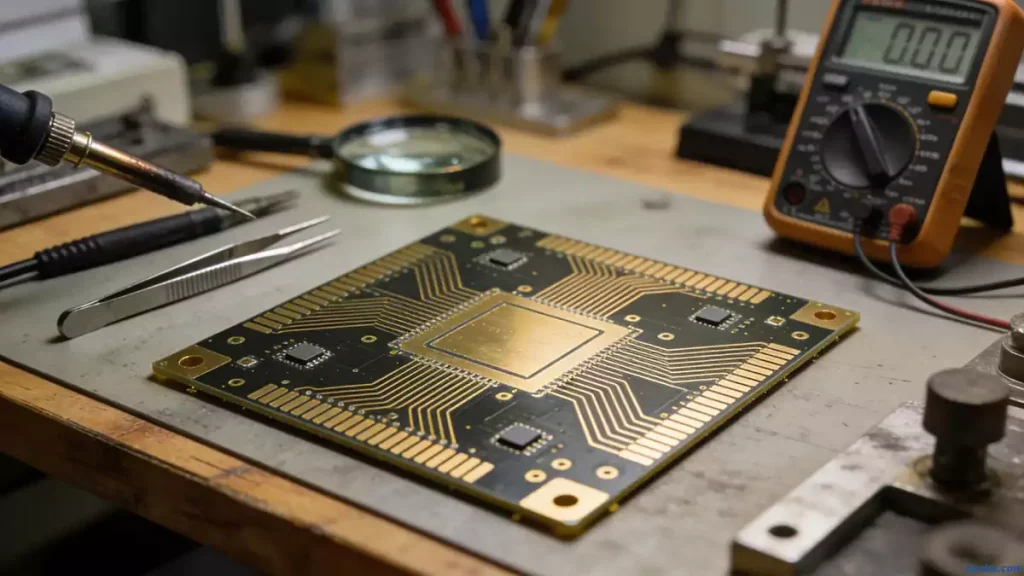

RF Microwave PCB close-up with gold-plated circuits and microstrip lines in electronics lab
RF Microwave PCB close-up with gold-plated circuits and microstrip lines in electronics lab

Why RF Microwave PCBs Need Special Materials

Regular FR-4 just won’t cut it here.

For RF and microwave designs, we rely on materials with:

  • Low dielectric constant (Dk)
  • Low loss tangent (Df)
  • Stable thermal expansion coefficient (CTE)

Commonly used materials include:

  • Ceramic-filled hydrocarbon substrates
  • PTFE, FEP, LCP
  • Rogers RO series laminates
  • High-performance FR-4 for lower high-frequency ranges

One thing that trips up a lot of designers? Dk and Df values change with frequency—especially between 1MHz and 1GHz.

Take standard FR-4: its Dk drops from 4.7 (at 1MHz) to 4.19 (at 1GHz), then stays more stable above 1GHz.

High-quality RF materials stay far more consistent across frequencies, which is why they’re non-negotiable for serious microwave designs.

Loss tangent (Df) is even more sensitive. It tends to rise with frequency, so we always prioritize materials with stable, low Df for RF performance.

Common High-Speed & RF PCB Materials

These are the most trusted brands and models in the industry:

  • Rogers: RO4003, RO3003, RO4350, RO5880
  • Taiyao TUC: Tuc862, 872SLK, 883, 933
  • Panasonic: Megtron 4, Megtron 6
  • Isola: FR408HR, IS620, IS680
  • Nelco: N4000-13, N4000-13EPSI
  • Domestic brands: Shengyi, Wangling, Taixing Microwave

Key Advantages of RF Microwave PCB

  1. Stable in high temperatures
  2. Low-CTE materials prevent warping and keep structure reliable in harsh environments.
  3. Cost-efficient multilayer design
  4. Multilayer stacking lowers assembly cost while improving RF performance.
  5. Clean, fast high-frequency signal transmission
  6. Stable Dk and low loss tangent mean signals move quickly with low impedance and minimal interference.

These strengths make RF PCBs essential for wireless transmission, networking, radar, smartphones, sensors, and robotics.

Applications of RF microwave PCBs in 5G automotive smartphones and satellite communication
Applications of RF microwave PCBs in 5G automotive smartphones and satellite communication

Real Project Story 1: 5G Indoor Micro Base Station RF Module

A communications team was developing a 5G indoor micro base station using a 3.5GHz RF signal.

In early tests, their signal loss was far too high, and the base station couldn’t maintain stable connectivity. Even small temperature changes made the performance worse.

They switched from standard high-speed FR-4 to Rogers RO4350—a classic RF microwave substrate with stable Dk and extremely low loss tangent. They also strictly controlled impedance matching during layout.

After the change:

  • Signal loss decreased by more than 40%
  • The module stayed stable across -20℃ to 70℃
  • The design passed 5G operator certification smoothly

A material swap that cost a few hundred dollars saved a six-figure R&D project. The prototype went from “lab curiosity” to “shipping product” in under two months.

Real Project Story 2: Automotive 24GHz Millimeter-Wave Radar Sensor

A manufacturer was building 24GHz automotive blind-spot radar sensors.

Their early design suffered from unstable detection distance and occasional signal drift, especially after temperature cycles. The root cause was PCB thermal expansion distorting the microwave circuit.

They solved it by using a low-CTE ceramic-filled hydrocarbon substrate and a compact multilayer stackup. This kept the board dimensionally stable even in extreme vehicle temperatures.

The result:

  • Radar distance error reduced to under 3%
  • Passed all automotive reliability tests

Today, these sensors are in thousands of family SUVs—and none of them beep for no reason when you park next to a bush.

Who Uses RF Microwave PCBs?

Almost every Communication Device depends on them:

  • 5G base stations & small cells
  • Automotive radar & ADAS systems
  • IoT wireless sensors
  • Smartphones & wearables
  • Satellite & military communication
  • Industrial RF remote & monitoring devices

If your product sends or receives high-frequency wireless signals, you almost certainly need an RF microwave PCB.

Building RF boards? That’s what we do at opcba.com—tight impedance control, strict material sourcing, and high-frequency production processes you can actually rely on.
