If you’ve ever reached for an aluminium substrate PCB to solve a thermal problem, you know the datasheet value alone doesn’t get you very far. Aluminum PCB – Structure, Advantages, and Applications. Chasing a higher conductivity number can lead to expensive boards that still struggle if you ignore the other pieces—thermal resistance and voltage withstand. Below, I’ll walk through what those numbers really mean and where things get tricky in fabrication.
The 1.0–2.0 W/mK Range and What It Costs
Most aluminium substrate PCBs on the market sit between 1.0 and 2.0 W/mK. When you need thermal conductivity of aluminium substrate above 2.0, the price jumps noticeably. It’s easy to assume a higher number always means better heat dissipation, but in practice, the interface material and copper layout often dominate the result. You can measure thermal conductivity of aluminium substrate with a steady-state tester, though that measurement only tells one part of the story.
Beyond Conductivity: Thermal Resistance Is the Silent Decider
While thermal conductivity of aluminium substrate grabs attention, aluminium PCB thermal resistance often has the final say in real boards. You can have a 2.0 W/mK dielectric layer that still traps heat if the layer is thick or poorly bonded to the base. I’ve seen designs where a 1.5 W/mK board outperformed a 2.0 one simply because the overall thermal-resistance stackup was lower. So when you evaluate a material, ask for the aluminium PCB thermal resistance data, not just the headline conductivity figure. And don’t forget the withstand voltage—especially in mains-powered LED drivers where insulation breakdown can be catastrophic.
High Copper Designs: When 3 oz Becomes a Process Nightmare
When you push copper thickness above 3 oz, the usual fabrication rules start to break. This is where aluminium substrate manufacturing gets really hands-on. Three headaches pop up consistently:
- Printing solder paste evenly becomes a struggle because the deeply etched circuit lines create valleys that lead to inconsistent paste deposits and bridging.
- Engineering line-width compensation has to account for the etch factor with heavy copper. Without careful compensation, finished trace widths can shrink unpredictably.
- The aluminium surface treatment itself—degreasing, nitric neutralisation, roughening, oxidation, neutralisation, sealing, baking—demands tight process control. A slip in any step leads to poor adhesion or corrosion later.
These aren’t trivial to get right, and skipping validation here leads to field returns that cost far more than the upfront NRE.
Where Aluminium Boards Actually Shine (and Why You Can Ditch the Heatsink)

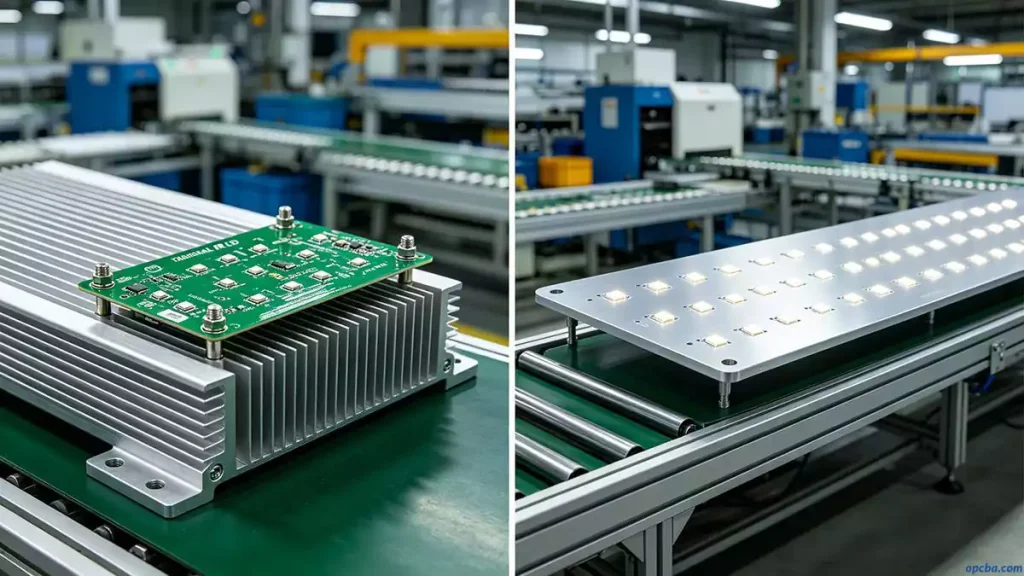

Aluminium substrate PCB technology earned its place because it solves three physical problems at once: heat spreading, thermal expansion mismatch, and dimensional stability. Think about an FR4 multi-layer board running a dense processor—local hot spots cause uneven expansion, which eventually cracks solder joints. An aluminium board spreads that heat laterally, keeping the whole assembly closer to the same temperature. This effectively replaces discrete heatsinks and simplifies mechanical design, cutting both part count and labour. When I first switched a high-brightness LED array from FR4 with a bolt-on heatsink to an aluminium core, the assembly time dropped by half and the junction temperature stayed lower despite a thinner profile.
Choosing the right aluminium substrate manufacturing partner makes all the difference—especially when heavy copper and thick dielectrics are involved. Ask your fabricator directly about their high-copper process control and oxidation line stability before locking in the stackup.
Putting It All Together
Picking an aluminium substrate PCB isn’t about buying the highest thermal conductivity on the spec sheet. It’s about matching conductivity, thermal resistance, and voltage handling to your actual design—and making sure your manufacturer can handle the copper weight and surface finish you call out. Get those right, and you’ll have a board that outperforms FR4 on thermals without breaking the bank.
