If you’ve been researching high-performance PCB materials, you’ve likely come across the name S1000-2. This is a specialized PCB substrate from Shengyi, designed to meet the demands of modern, high-stakes electronic designs. Let’s break down what it is, how it relates to FR-4, and why it matters for your projects.
What is S1000-2?
S1000-2 is a high-Tg (glass transition temperature) PCB material, and it falls under the broader category of FR-4 substrates (learn more: What is FR-4? The PCB Industry Standard & Its Limitations).While FR-4 is a general classification for flame-retardant glass fiber-reinforced epoxy laminates, S1000-2 is a premium grade from Shengyi that builds on the standard FR-4 properties with enhanced performance for high-temperature and high-reliability applications.
In short: S1000-2 is an advanced FR-4 material, not a replacement for it. It retains the core benefits of FR-4 but adds critical improvements for lead-free soldering, thermal management, and long-term reliability.
Key Features of S1000-2 PCB Material
S1000-2 stands out from standard FR-4 due to its engineered properties, making it ideal for demanding environments:

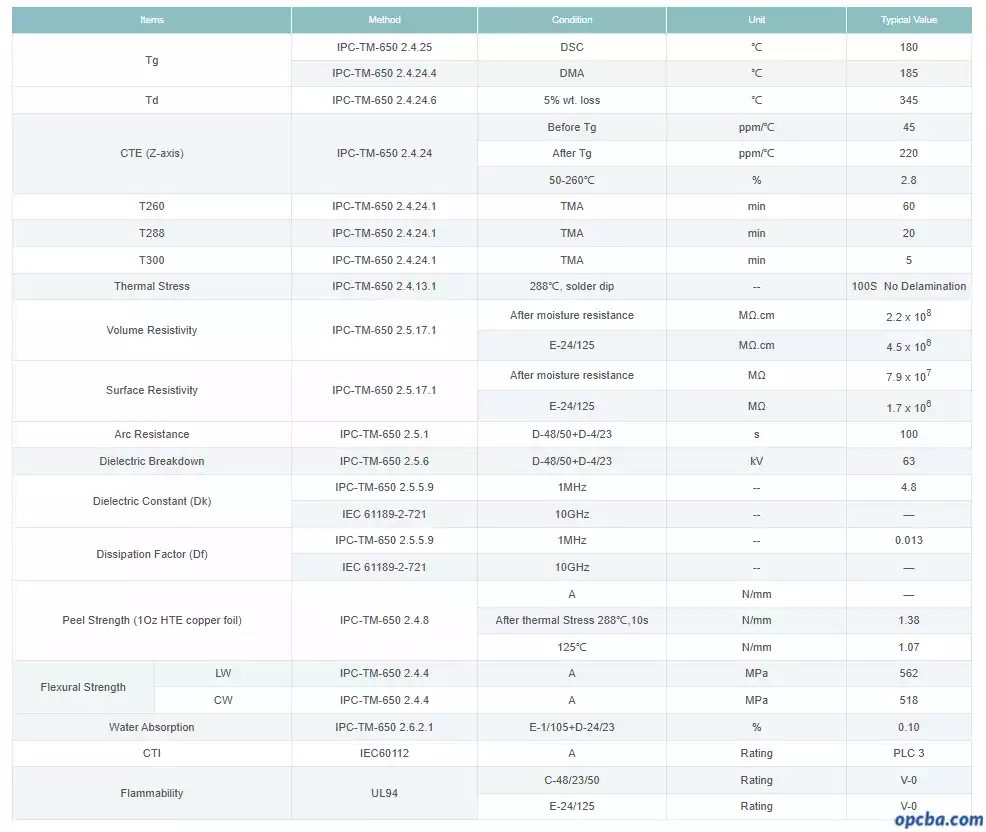

- High glass transition temperature (Tg = 180°C, DSC method): This means the material maintains its structural integrity at higher temperatures, reducing the risk of warping or delamination during soldering and operation. (Based on the latest data from Shengyi Technology official website)
- Superior heat resistance: Designed to withstand repeated thermal cycling, which is essential for lead-free soldering processes and high-power electronic components.
- High thermal decomposition temperature (Td = 345°C, 5% weight loss): Provides excellent thermal stability, ensuring the material does not decompose easily under high-temperature operating conditions. (Supplemented based on Shengyi Technology official website data)
- Thermal stress resistance: T288 (thermal stress time) is 20 minutes, and T300 (thermal stress time) is 5 minutes, meeting the requirements of high-reliability electronic product manufacturing. (Corrected based on Shengyi Technology official website data, adjusted from “>” to “=”)
- Lead-free compatibility: Fully compliant with modern lead-free manufacturing standards, ensuring it can be used in RoHS-compliant designs without compromising performance.
- Low water absorption: Specific value is 0.10%, minimizing the risk of moisture-related issues, such as delamination or electrical insulation degradation, even in humid environments. (Corrected from qualitative to quantitative description based on Shengyi Technology official website data)
- Excellent through-hole reliability and anti-CAF performance: Reduces the risk of conductive anodic filament (CAF) formation, a common failure mode in high-density PCBs, and ensures reliable plated-through holes (PTHs) over the product’s lifespan.
- Specific Z-axis thermal expansion coefficient: 45 ppm/°C (before Tg), 220 ppm/°C (after Tg), and 2.8% (50-260°C). This controls the material’s expansion along the thickness direction, which is critical for maintaining the integrity of plated-through holes and preventing solder joint failures during thermal cycling. (Corrected from qualitative to quantitative description based on Shengyi Technology official website data)
Common Applications of S1000-2
Thanks to its enhanced performance, S1000-2 is used in a wide range of high-reliability electronic devices:
- Networking equipment: Routers, switches, and other communication hardware that require stable performance under continuous operation.
- Computing devices: High-end motherboards and server components where thermal management and long-term reliability are critical.
- Industrial control systems: Precision instruments and industrial automation equipment that operate in harsh, high-temperature environments.
- Telecommunications infrastructure: Base stations and other communication infrastructure that demands consistent performance and durability.
For complete parameter tables and detailed specifications on S1000-2 material, please reach out to the OPCBA technical team.
